模拟开关

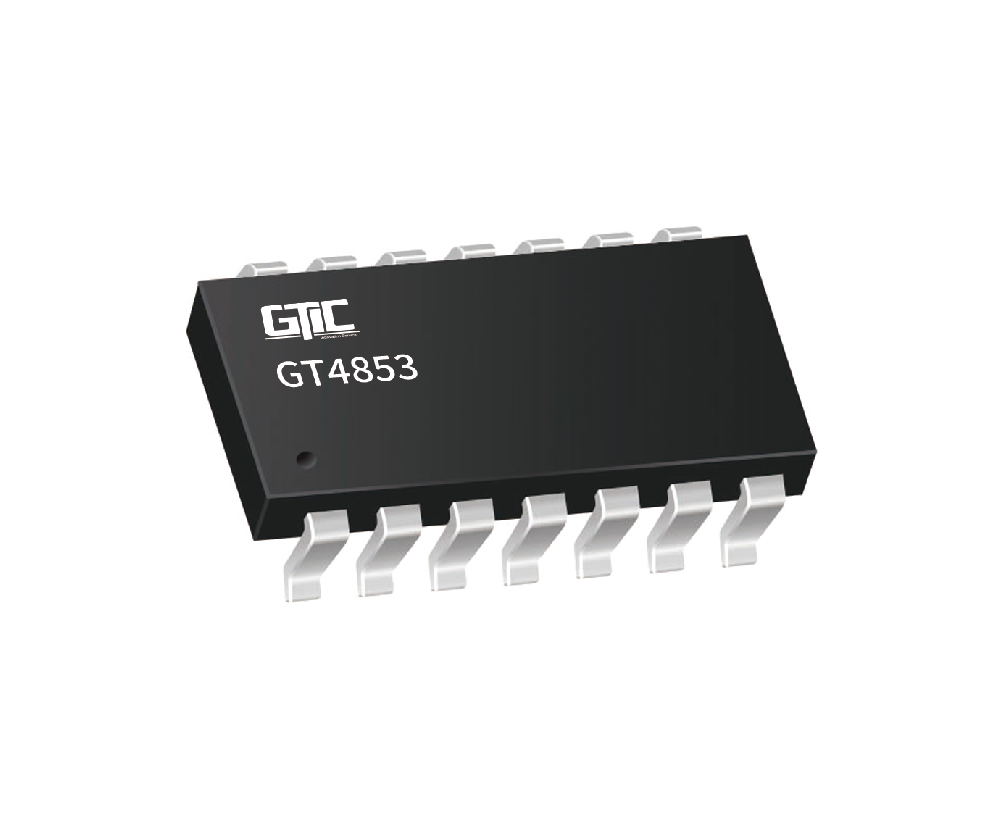

GT4853
The GT4853 is a CMOS analog IC configured as three single-pole/double-throw(SPDT) multiplexers. This CMOS device can operate from 2.5 V to 5.5 V.
The GT4853 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc.
The GT4853 is available in Green SOP16, TSSOP16, QFN-3*3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
特性
- High bandwidth: 780MHz
- Low on-state resistance: 19Ω @5V
- Supply range: +2.5V to +5.5V
- High off-Isolation:-68dB(RL=50 Ω,f=1MHZ)
- Break-before-make switching
- Low On-Resistance Flatness
- Operation temperature range:-40°C to +125°C
- Micro size packages:SOP16, TSSOP16, QFN-3*3-16L
应用
- Automotive
- Portable Equipment
- Sample and hold circuits
- Data-Acquisition Systems
- Battery-Powered Systems
- Audio and Video Signal Routing
