电压基准

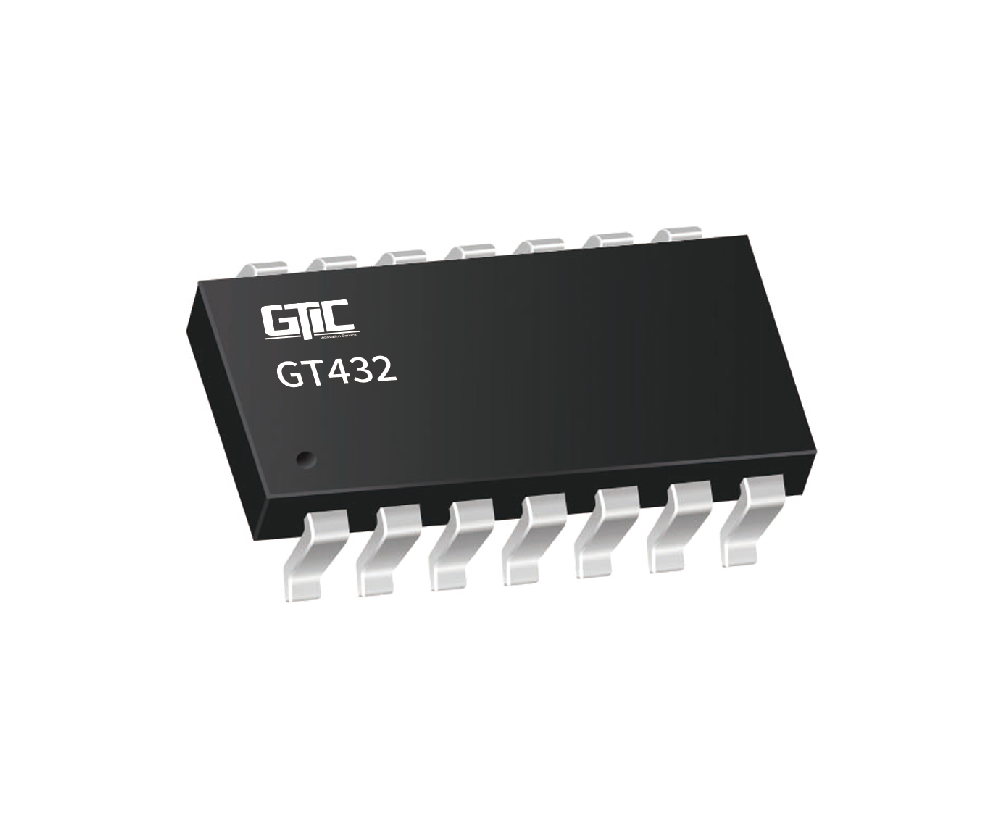

GT432
The GT431 and GT432 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. These devices provide a very sharp turn-on characteristic, making these devices excellent replacement for Zener diodes in many applications. Both the GT431 and GT432 devices are offered in two grades, with initial tolerances (at 25°C) of 0.4%.
特性
- Reference voltage tolerance 0.4% at 25°C
- Programmable output voltage to 36V
- Low dynamic output impedance 0.2Ω
- Sink current capability of 0.15mA to 100mA
- Equivalent full-range temperature coefficient of 50ppm/°C typical
-Temperature compensated for operation over full rated operating temperature range
- Low output noise voltage
- Fast turn on response
- Operation from
-40°C to 125°C
- Lead-Free packages: SOT23
应用
- Adjustable voltage and current referencing
- Power supply
- Zener replacement
- Voltage monitoring
- Comparator with integrated reference
- As precision voltage reference
